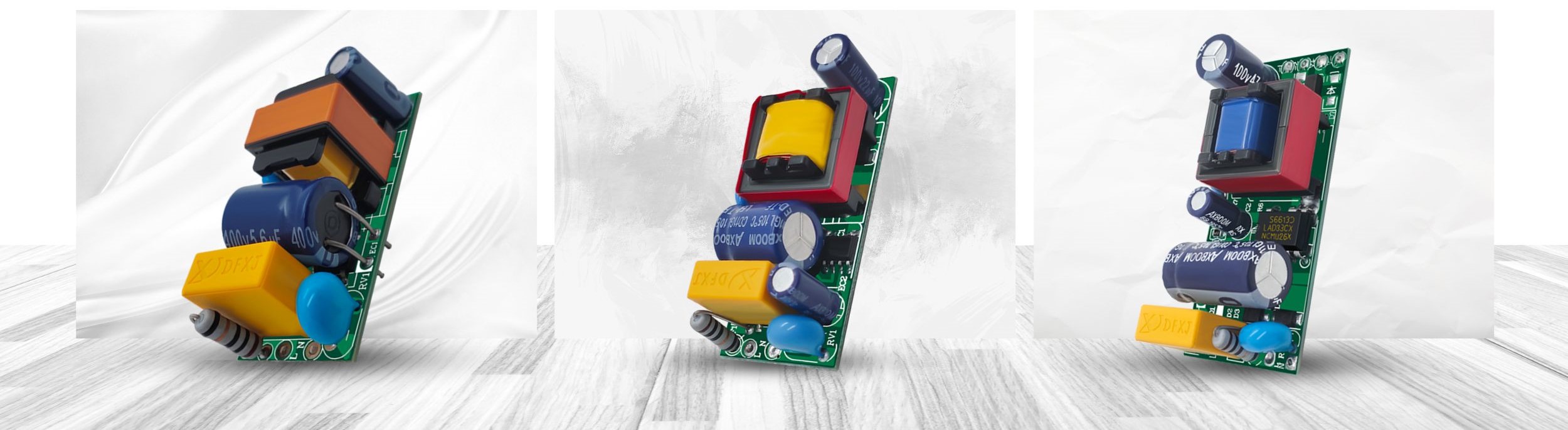

Isolated Driver

It is suitable for indoor lighting such as living room, bedroom, some lighting corridor. One also has an option of making these lights smart by using mobile apps which can remotely turn on/off or dim. Further sensors can be used to detect presence/absence of a person and lights can be switched off for additional power savings.

3W / 4-7W / 7-12W / 12-18W / 18-24W / 24-30W / 24-36W

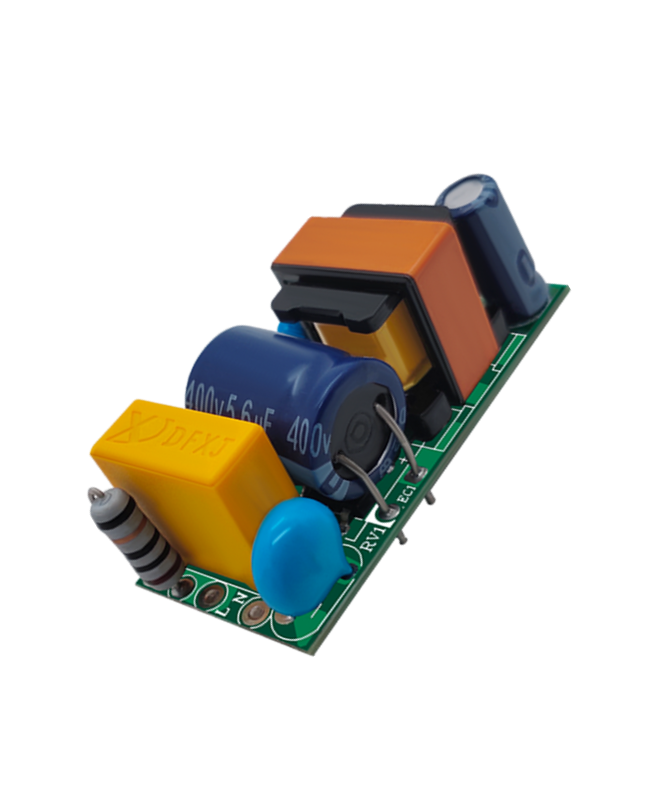

4-7W

In an isolated LED driver the Input & Output are separated by power transformer which provides galvanic isolation. Isolated power supply transform the 110/350V AC voltage to the lower voltage by means of an isolation transformer.

Model : OM-2305

Currant : 300mA
Description : Isolated HPF
Surge Protection : 2.5-3KV
Voltage Range : 12-21 VDC
High Voltage : 350 VAC
Size : 37 x 18mm

Testing Report

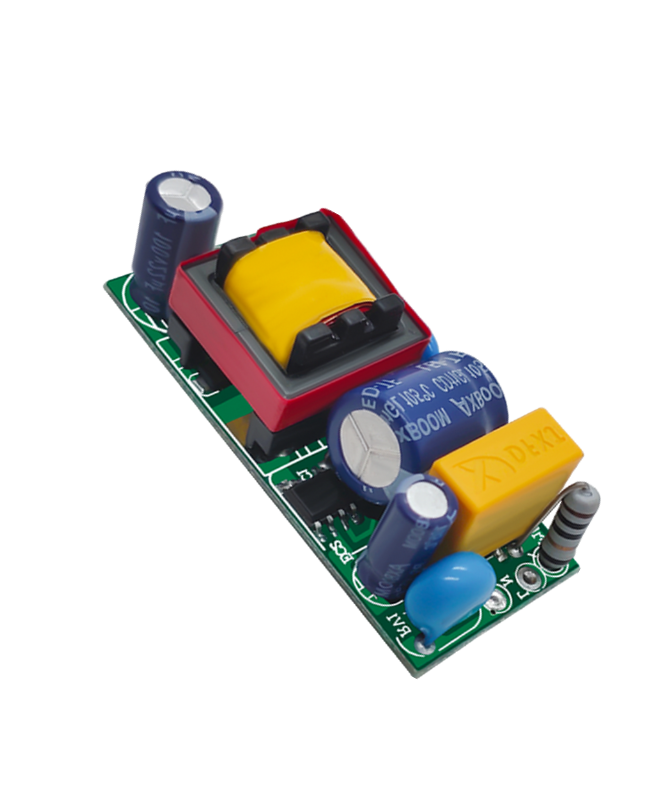

7-12W

It is suitable for indoor lighting such as living room, bedroom, some lighting corridor. One also has an option of making these lights smart by using mobile apps which can remotely turn on/off or dim. Further sensors can be used to detect presence/absence of a person and lights can be switched off for additional power savings

Model : OM-2306

Currant : 300 mA
Description : Isolated HPF
Surge Protection : 2.5-3 KV
Voltage Range : 21-36 VDC
High Voltage : 350 VAC
Size : 46 x 20mm

Testing Report

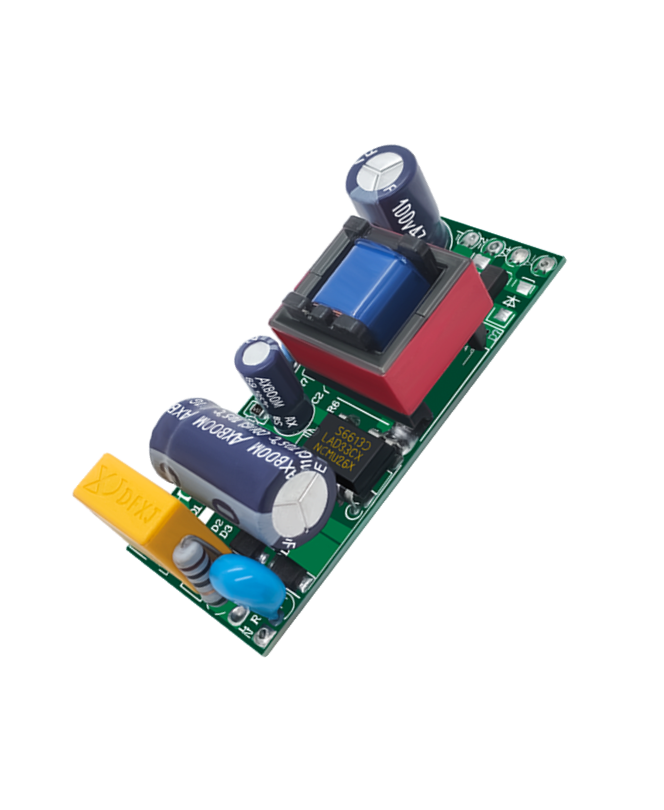

12-18W

The isolation transformer plays a key role in stepping down the high voltage to a lower, safer voltage level for the LED driver to operate efficiently and reliably. This setup not only ensures the safety of the device but also contributes to its longevity and overall functionality.

Model : OM-2307

Currant : 440mA
Description : Isolated HPF
Surge Protection : 2.5-3 KV
Voltage Range : 36-54 VDC
High Voltage : 350 VAC
Size : 53 x 23mm

Testing Report
