Led Waterproof Driver For Outdoor lighting solution

High-quality components

High efficiency and energy saving

IP-65 waterproof

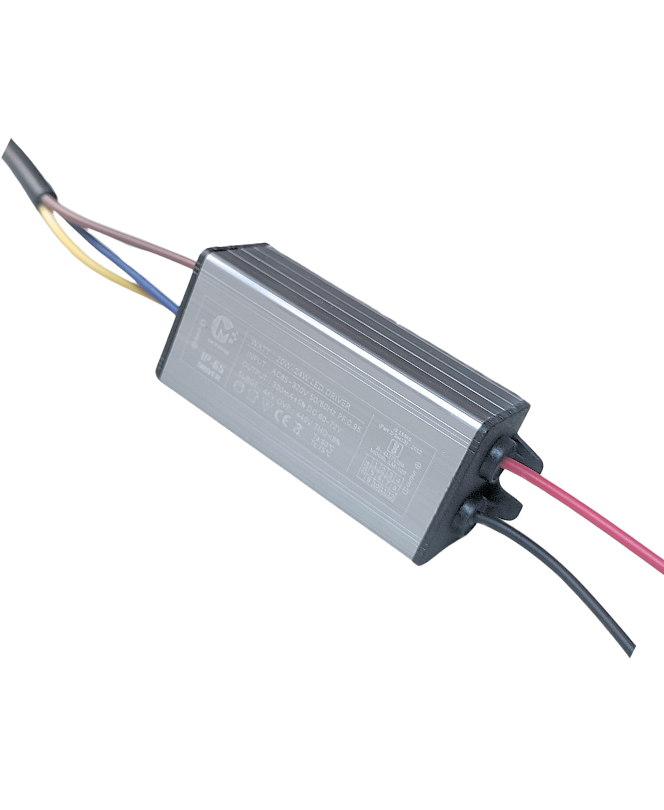

20-24W

lED Tubelight driver is a superior-quality product designed for high performance, easy installation, and cost-effectiveness. With its user-friendly design and versatile applications, this LED driver is perfect for all your lighting needs. Buy now and enjoy long-lasting and efficient lighting solutions.

Model : OM-2033 (LPF)

Currant : 300mA
Description : Non-Isolated
Surge Protection : 4 KV
Voltage Range : 60-72 VDC
High Voltage : 350 VAC
Size : 50L x 28W x 21H mm
Testing Report

Model : OM-2312(HPF)

Currant : 300mA
Description : Isolated
Surge Protection : 4 KV
Voltage Range : 60-72 VDC
High Voltage : 350 VAC
Size : 73L x 29W x 21H mm

Testing Report

Model : OM-2312(HPF)

Currant : 600mA
Description : Isolated
Surge Protection : 4 KV
Voltage Range : 60-72 VDC
High Voltage : 350 VAC
Size : 73L x 29W x 21H mm

Testing Report

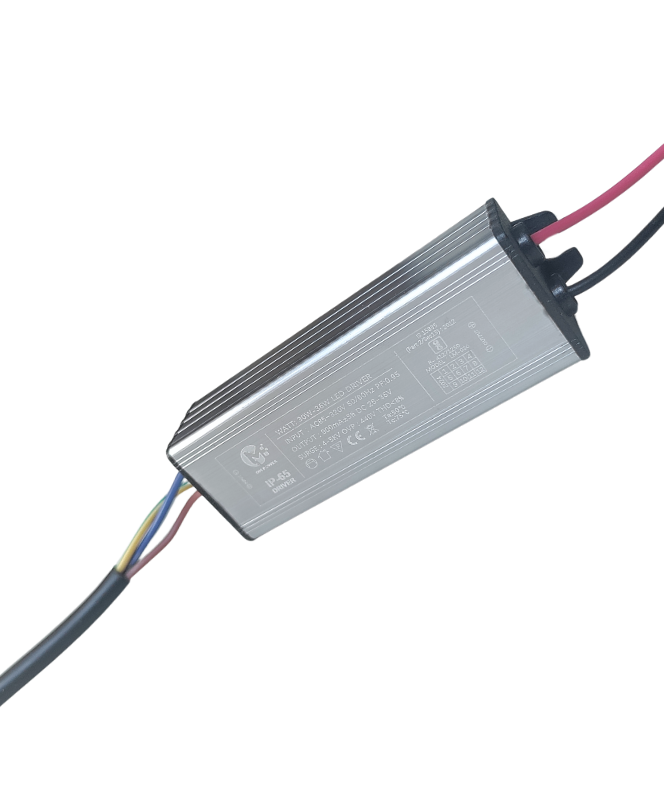

30-36W

Waterproof led drivers has high waterproof performance its also Good power saving rate and lighting comfort make the development of led outdoor lighting more and more the better

Model : OM-2312(HPF)

Currant : 600mA
Description : Isolated HPF
Surge Protection : 4 KV
Voltage Range : 44-52 VDC
High Voltage : 440 VAC
Size : 81L x 29W x 21H mm

Testing Report

Model : OM-2312(HPF)

Currant : 900mA
Description : Isolated HPF
Surge Protection : 4 KV
Voltage Range : 30-36 VDC
High Voltage : 440 VAC
Size : : 81L x 29W x 21H mm

Testing Report

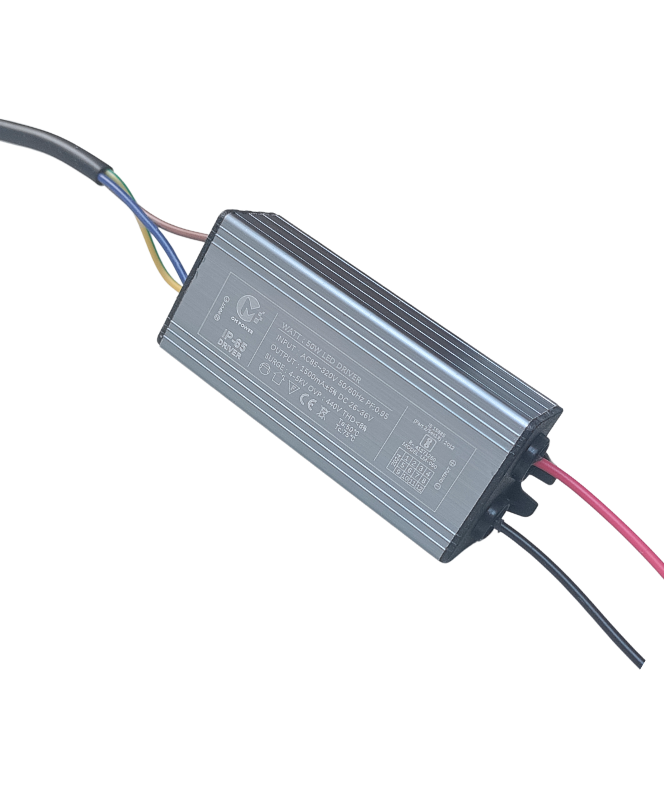

50W

Provide the most suitable LED lighting driver solutions, costeffective top performance LED drivers. The driver is IP65 compliant, so it can be used in weather-free outdoor areas, but not underwater. And the product is designed to withstand surges and lightning strikes and can be used in outdoor lighting such as street lamps.

Model : OM-2315

Currant : 1500mA
Description : Isolated HPF
Surge Protection : 5 KV
Voltage Range : 30-36 VDC
High Voltage : 440 VAC
Size : 81L x 34W x 23H mm

Testing Report

Model : OM-2316

Currant : 1500mA
Description : Isolated HPF
Surge Protection : 6 KV
Voltage Range : 30-36 VDC
High Voltage : 440 VAC
Size : : 81L x 34W x 23H mm

Testing Report

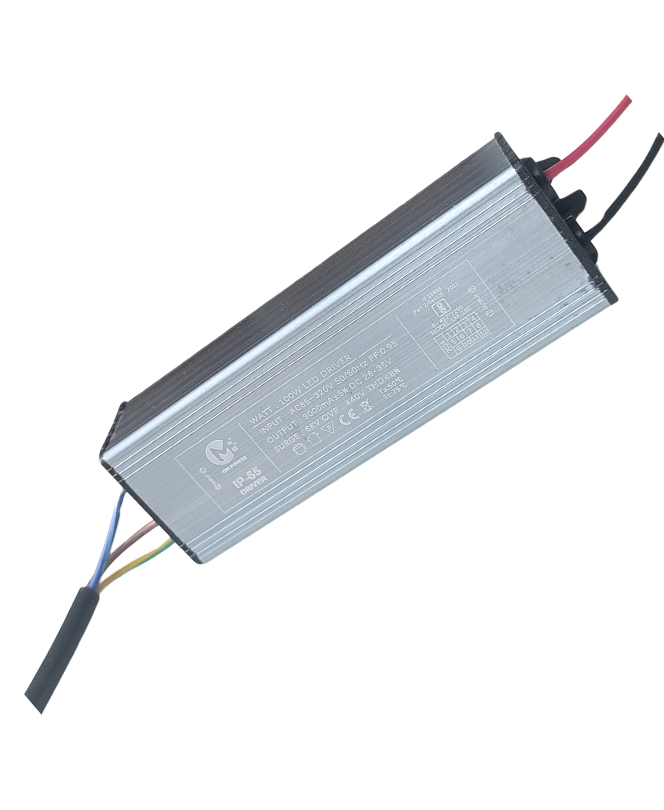

100W

High-efficiency led street light is an energy-saving product, so the efficiency of the led street light driver is high. Because the luminous efficiency of led light decreases with the increase of temperature, the heat dissipation of led light is very important.

Model : OM-2317(HPF)

Currant : 3000mA
Description : Isolated HPF
Surge Protection : 6 KV
Voltage Range : 26-36 VDC
High Voltage : 440 VAC
Size : 107L x 34W x 25H mm

Testing Report
